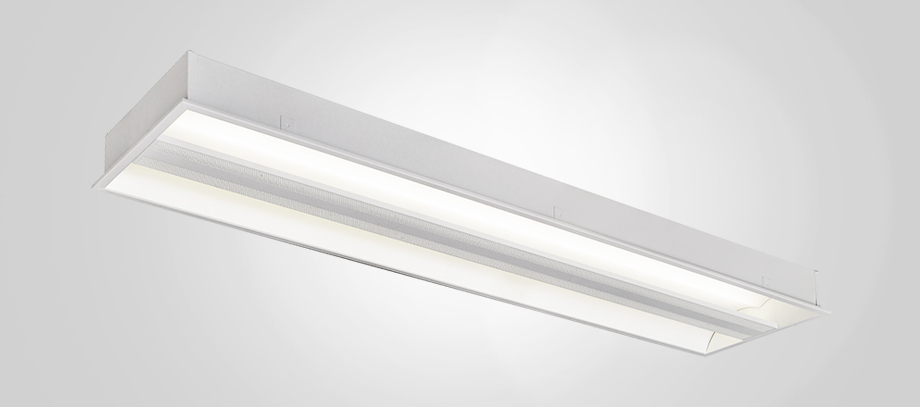

This indirect light goes back to the simplicity. The re-innovated reflector design delivers an aesthetic product appearance while it crrates more than 30% output than exisitng indirect light products.
Features:●0.6 cold-roll steel housing with sandy white powder coating
●Samsung 2835 LEDs as standard LEDs, optional with other brands or upon customized request
●Driver options: non-dimmable, 1-10V, DALI dimmable available; Sensor and emergency battery kits are available upon request
●Recessed installation
Benefits:
●Simplify optic design to improve light output by more than 30%
●Uniform direct and indirect light output
●Long working life with high efficiency for energy saving
Key Applications:
Education buildings, Office buildings, Hallways and Corridors, etc
|

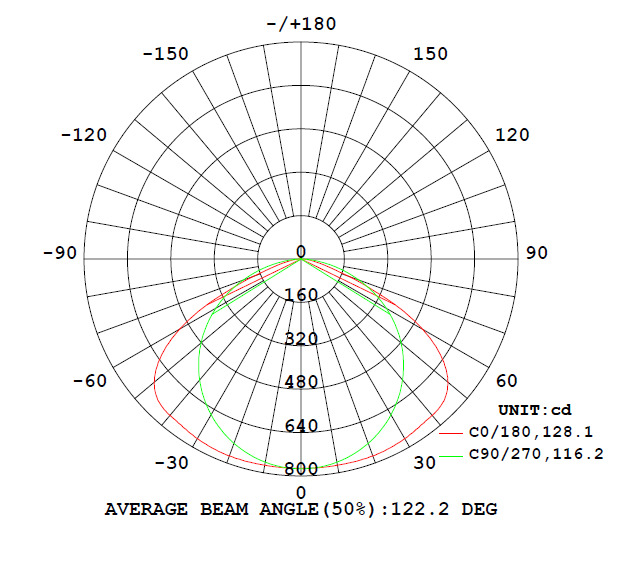

Photometric: |

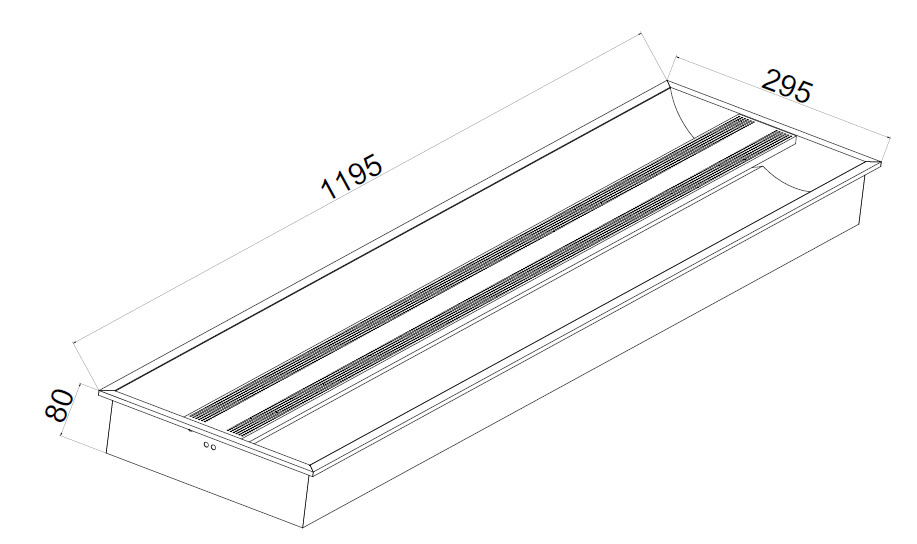

Drawing: |
|
|
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQG-LED-140D |
1195x295x80mm |
36w |
2630lm |
3000-6500K |
80 |
>0.9 |
123x63x19 |
2pcs |
