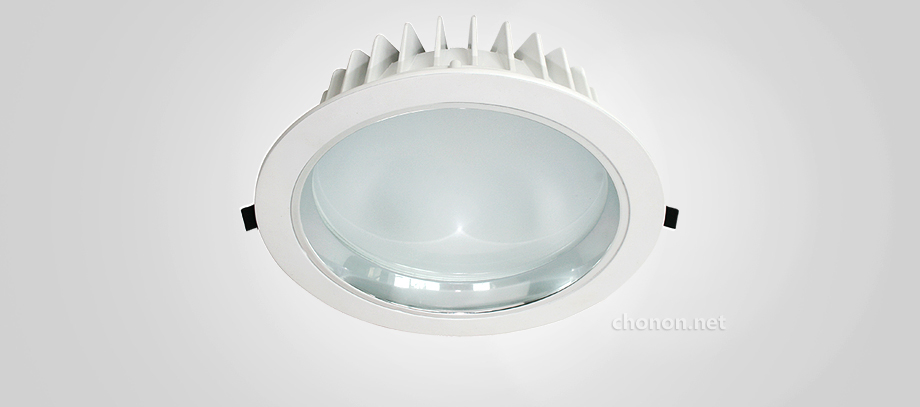

LED downlight-J Series
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●Highly reflective white paper inside to create high efficiency
●LED chips options: Samsung, Epistar
●Low profile in the ceiling with remote driver
●CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●Highly reflective white paper inside to create high efficiency
●LED chips options: Samsung, Epistar
●Low profile in the ceiling with remote driver
●CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter ? (mm) |
Cutout ? (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0618J |
180 |
163 |
80 |
18w |
1700 |
3000-6500K |
>80 |
>0.9 |
40x40x30 |
12 |
|
MQT-LED-0830J |
230 |
210 |
80 |
30w |
2800 |
3000-6500K |
>80 |
>0.9 |
50x50x31 |
12 |
Other wattages and lumens are available on request.
