            LED downlight-I Series

Features:

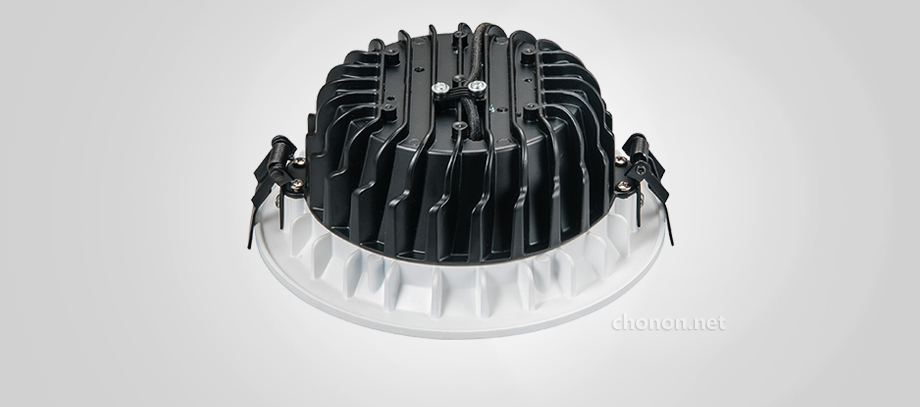

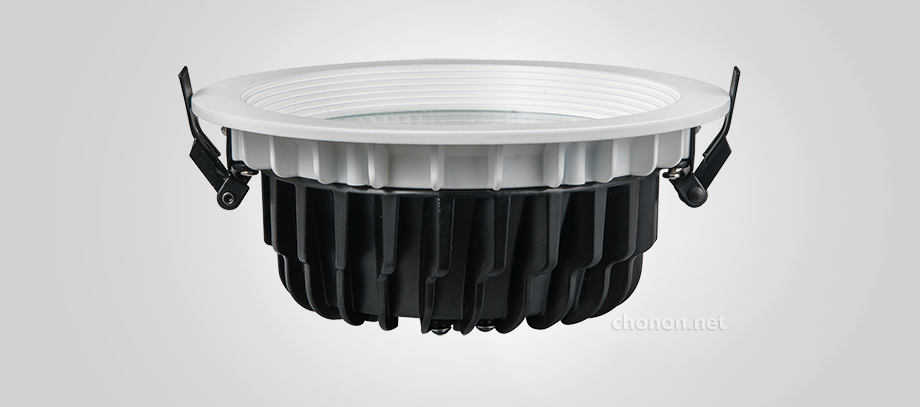

●Die-cast aluminium body ensures excellent heat dissipation

●High efficiency aluminum reflector with glass

●COB options:  Citizen, Cree and Epistar

●Remote drivers: Non-dimmable, DALI or 1-10V on request

●IP20, Ta25, CRI>80

●high performance and Cost effective,



Installation:

Recess mounted



Key Applications:

Shopping Centers, Supermarkets, Office buildings, Hallways, exhibition and showrooms, etc








				Photometric:



				Drawing:





























					Product Code






					Diameter ? (mm)






					Cutout ? (mm)






					Height (mm)






					Wattage






					Lumen @4000K (lm)






					CCT (K)






					CRI






					Power Factor






					Carton Size (cm)






					Qty/ctn  (pcs)










					MQT-LED-0305I






					103






					92






					52






					5w






					400lm






					3000-6500K






					>80






					>0.9






					46x35x21






					36










					MQT-LED-0410I






					119






					106






					52






					10w






					800lm






					3000-6500K






					>80






					>0.9






					54x41x28






					36










					MQT-LED-0515I






					146






					138






					66






					15w






					1350lm






					3000-6500K






					>80






					>0.9






					47x32x27.5






					18










					MQT-LED-0620I






					170






					152






					69






					20w






					1900lm






					3000-6500K






					>80






					>0.9






					38x38x27.5






					12










					MQT-LED-0830I






					224






					218






					85






					30w






					2900lm






					3000-6500K






					>80






					>0.9






					49x49x31






					12











	Other wattages and lumens are available on request.
