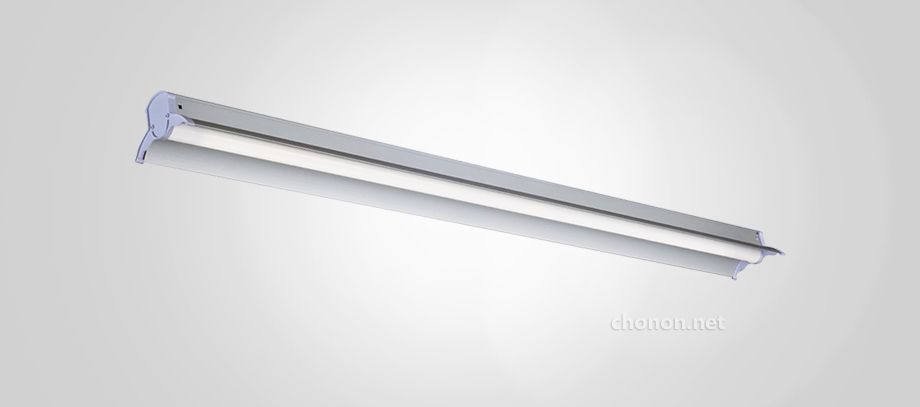

LED Continuous Aluminum Batten
Widely applied in supermarket-like environment, this LED batten now is able to produce more light output to the spacious space comparing to its fluorescent T8 version. Continuous connection is easy to achieve with a special designed connector.
Features:
●Premium aluminum housing and reflector
●High transmission PC opal diffuser
●1-10V, DALI, DSI dimmable available;
●Suspension/Surface mounted installation
●Easy and quick installation for continuous connection
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide light distribution for shadow-less illumination
●Long working life and high efficiency for energy saving
Key Applications:
Shopping Centers, Super-markets, Hallways and Corridors, etc
Specification:
Widely applied in supermarket-like environment, this LED batten now is able to produce more light output to the spacious space comparing to its fluorescent T8 version. Continuous connection is easy to achieve with a special designed connector.
Features:
●Premium aluminum housing and reflector
●High transmission PC opal diffuser
●1-10V, DALI, DSI dimmable available;
●Suspension/Surface mounted installation
●Easy and quick installation for continuous connection
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide light distribution for shadow-less illumination
●Long working life and high efficiency for energy saving
Key Applications:
Shopping Centers, Super-markets, Hallways and Corridors, etc
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-130K |
1150x104x64 |
30w |
2850lm |
3000-6500K |
>80 |
>0.9 |
118.5x52x19 |
8pcs |
|
MZJ-LED-136K |
1150x104x64 |
36w |
3420lm |
3000-6500K |
>80 |
>0.9 |
118.5x52x19 |
8pcs |
|
MZJ-LED-140K |
1150x104x64 |
40w |
3840lm |
3000-6500K |
>80 |
>0.9 |
118.5x52x19 |
8pcs |
Other wattages and lumens are available on request.
