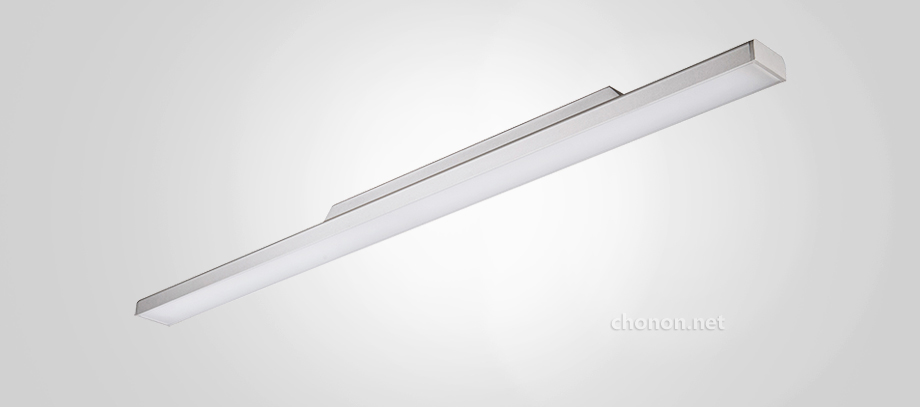

L25 LED Linear Pendant Light
This straight and narrow LED pendant represents the ultimate in simplicity and modern aesthetic.
Features:
●Premium aluminum housing, color powder coating is available
●High transmission PC opal diffuser
●LED options: Samsung 2835 as standard, other brands are available
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available
●Even light distribution
●Wide and slightly deep light distribution for shadow less illumination
Mounting:Suspension
Key Applications:
Shopping Centers, Office buildings, Hallways and Corridors, etc
Specification:
This straight and narrow LED pendant represents the ultimate in simplicity and modern aesthetic.
Features:
●Premium aluminum housing, color powder coating is available
●High transmission PC opal diffuser
●LED options: Samsung 2835 as standard, other brands are available
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available
●Even light distribution
●Wide and slightly deep light distribution for shadow less illumination
Mounting:Suspension
Key Applications:
Shopping Centers, Office buildings, Hallways and Corridors, etc
|
Photometric: |
Drawing: |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-136N |
1160x66x60 |
36w |
3200lm |
3000-6500K |
>80 |
>0.9 |
120x31x17 |
8pcs |
|
MZJ-LED-140N |
1160x66x60 |
40w |
3600lm |
3000-6500K |
>80 |
>0.9 |
120x31x17 |
8pcs |
|
MZJ-LED-145N |
11160x66x60 |
45w |
4000lm |
3000-6500K |
>80 |
>0.9 |
120x31x17 |
4pcs |
Other lengths, wattages and lumens are available on request.
