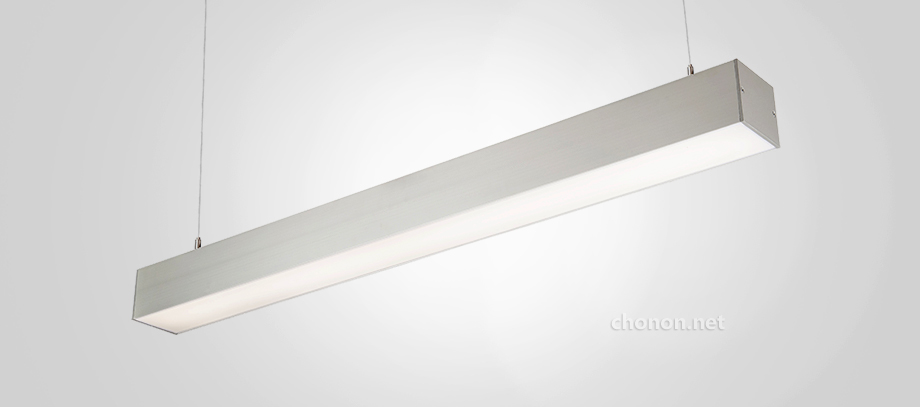

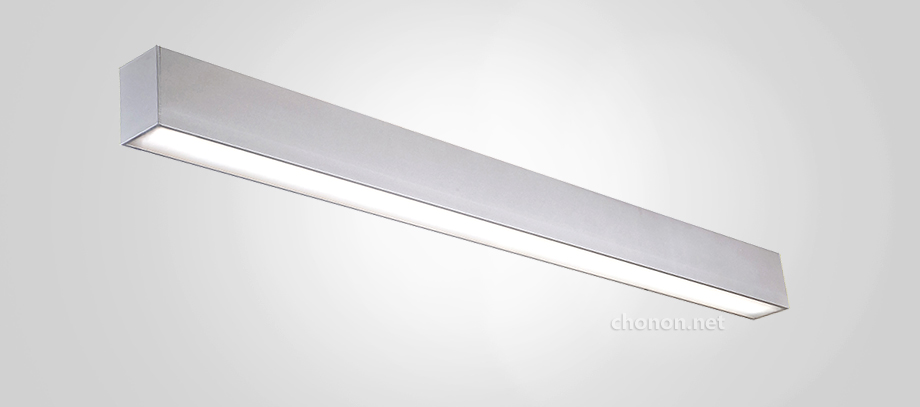

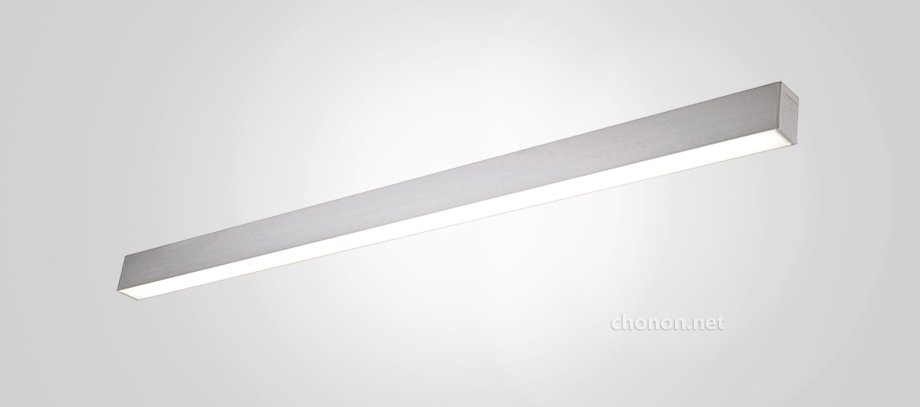

This straight and narrow LED pendant represents the ultimate in simplicity and modern aesthetic. It can be mechanically connected continuously in series, and with DALI or 1-10V dimming, it integrates seamlessly with today’s modern building management system.
Features:

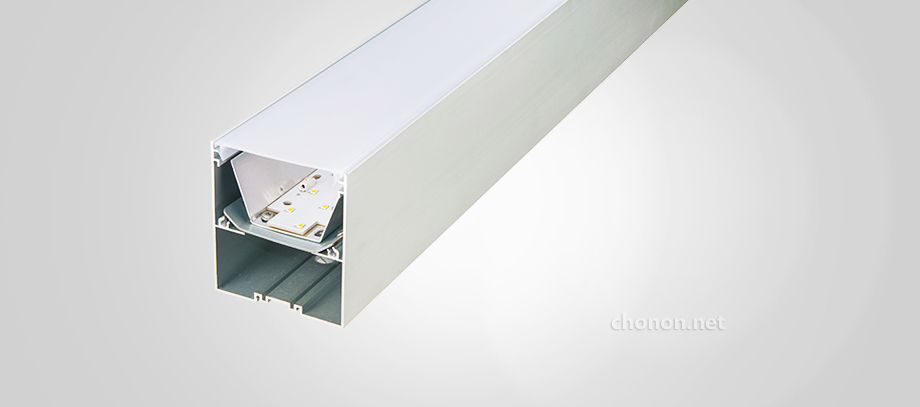

●Premium aluminum housing, color powder coating is available
●High transmission opal diffuser

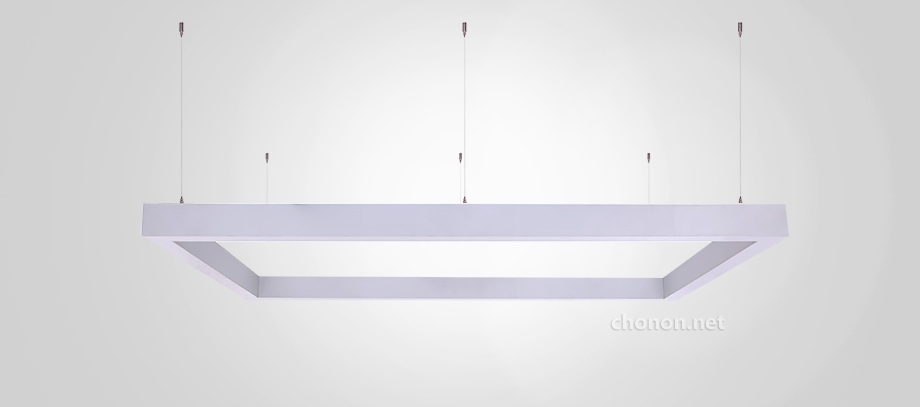

●Individual fixtures or continuous system
●1-10V, DALI, DSI dimmable available
●Suspension/Surface Mounted/Recessed installation
Benefits:
●Continuously connecting system
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow less illumination
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc
Photometric:
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-120A (1) |
1132x41x61 |
20w |
1600lm |
3000-6500K |
>80 |
>0.9 |
118x23x23 |
8pcs |
|
MZJ-LED-125A (2) |
1132x50x75 |
25w |
2000lm |
3000-6500K |
>80 |
>0.9 |
118x27x23 |
8pcs |
|
MZJ-LED-136A (3) |
1132x67x90 |
36w |
3240lm |
3000-6500K |
>80 |
>0.9 |
118x18x25 |
4pcs |
|
MZJ-LED-140A (4) |
1142x80x90 |
40w |
3320lm |
3000-6500K |
>80 |
>0.9 |
119x20x23 |
4pcs |
|
MZJ-LED-140A (5) |
1142x100x90 |
40w |
3520lm |
3000-6500K |
>80 |
>0.9 |
119x24x23 |
4pcs |
