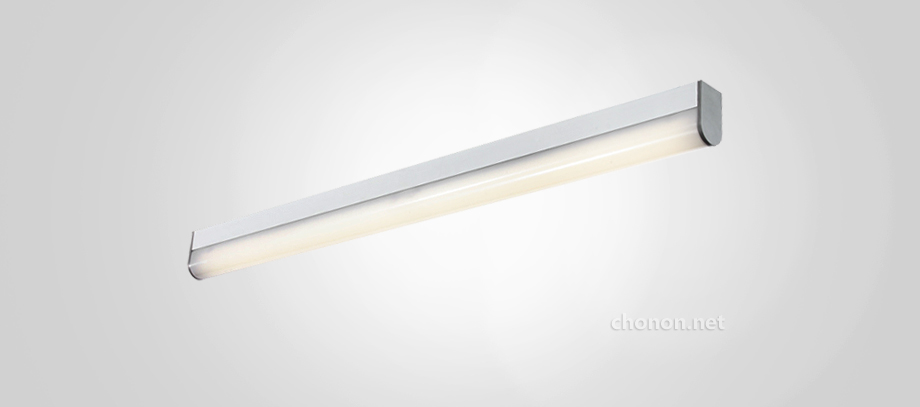

L17 LED Office Light （Ellipse shape）
This LED light employs a 3-side wrapped diffuser to create a wide beam angle of 160 degree while it only has a relatively thin fitting body (52mm). Its less in weight also makes it a popular product for easier shipment arrangement and installation as well.
Features:
●Premium aluminum housing, anodized or color powder coating
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available;
●Suspension/Surface mounted installation
Benefits:
●Easy upgrade to LED with same fitting from T5 fluorescent lamp
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide light distribution for shadow-less illumination
●Long working life with high efficiency for energy saving
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc
This LED light employs a 3-side wrapped diffuser to create a wide beam angle of 160 degree while it only has a relatively thin fitting body (52mm). Its less in weight also makes it a popular product for easier shipment arrangement and installation as well.
Features:
●Premium aluminum housing, anodized or color powder coating
●High transmission opal diffuser
●1-10V, DALI, DSI dimmable available;
●Suspension/Surface mounted installation
Benefits:
●Easy upgrade to LED with same fitting from T5 fluorescent lamp
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide light distribution for shadow-less illumination
●Long working life with high efficiency for energy saving
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc
|
Photometric: |
Drawing: |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-130D |
1184x52x90 |
30w |
3150lm |
3000-6500K |
>80 |
>0.9 |
122x28x22 |
8pcs |
|
MZJ-LED-140D |
1184x52x90 |
36w |
3780lm |
3000-6500K |
>80 |
>0.9 |
122x28x22 |
8pcs |
|
MZJ-LED-145D |
1184x52x90 |
40w |
4200lm |
3000-6500K |
>80 |
>0.9 |
122x28x22 |
8pcs |
Other wattages and lumens are available on request. Please contact us for more details on T5 fluorescent.
