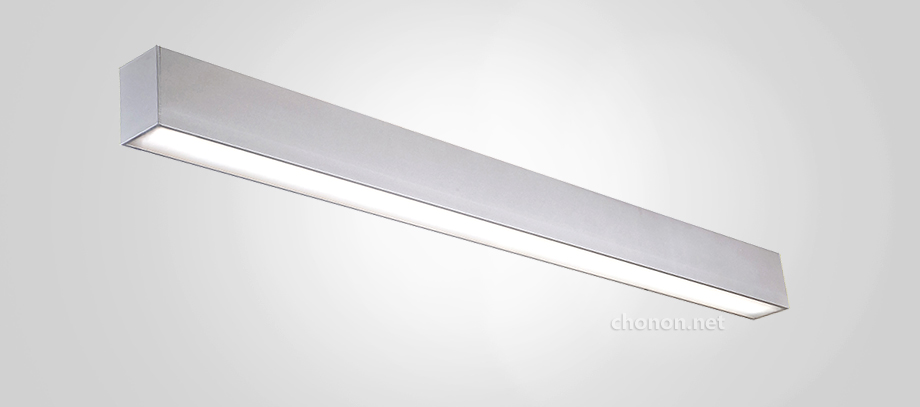

L19 LED Linear Pendant Light – Up and Down Lighting Version
This straight and narrow LED pendant represents the ultimate in simplicity and modern aesthetic. It can be mechanically connected continuously in series, and with DALI or 1-10V dimming, it integrates seamlessly with today’s modern building management system. Now the upgrade of the fitting design even allows this pendant to be able to provide both up and down lighting effect, making it quite a versatile light product.
Features:
Up and down lighting
●Premium aluminum housing ,anodized or other color powder coated
●High transmission opal diffuser
●Individual fixtures or continuous system
●1-10V, DALI, DSI dimmable available; Sensor and emergency batteries kit
●Suspension Installation
Benefits:
●Up and down lighting and continuously connecting system
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow-less illumination
Specification:
This straight and narrow LED pendant represents the ultimate in simplicity and modern aesthetic. It can be mechanically connected continuously in series, and with DALI or 1-10V dimming, it integrates seamlessly with today’s modern building management system. Now the upgrade of the fitting design even allows this pendant to be able to provide both up and down lighting effect, making it quite a versatile light product.
Features:
Up and down lighting
●Premium aluminum housing ,anodized or other color powder coated
●High transmission opal diffuser
●Individual fixtures or continuous system
●1-10V, DALI, DSI dimmable available; Sensor and emergency batteries kit
●Suspension Installation
Benefits:
●Up and down lighting and continuously connecting system
●modern aesthetic in ultimate simplicity
●Even light distribution
●Wide and slightly deep light distribution for shadow-less illumination
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-140A (U/D) |
1178x67x90 |
40w |
3661lm |
3000-6500K |
>80 |
>0.9 |
122x26x23 |
4pcs |
|
MZJ-LED-148A (U/D) |
1178x67x90 |
48w |
4320lm |
3000-6500K |
>80 |
>0.9 |
122x26x23 |
4pcs |
|
MZJ-LED-154A (U/D) |
1178x67x90 |
54w |
4860lm |
3000-6500K |
>80 |
>0.9 |
122x26x23 |
4pcs |
Other lengths, wattages and lumens are available on request.
